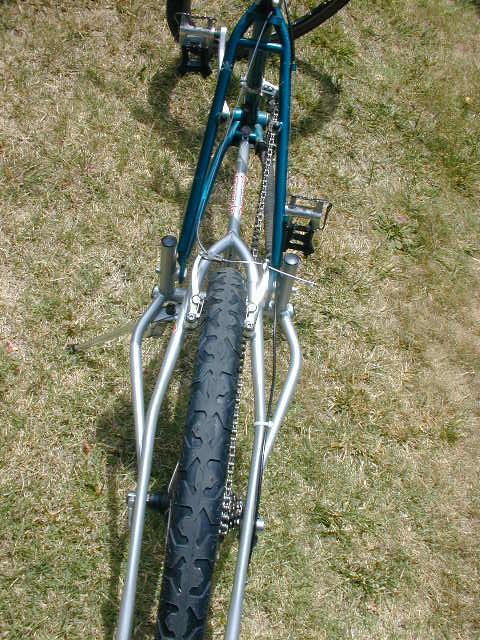

freerad top rear view

In this top view of the Free Radical frame you can see how the after section of it is basically "horizontal" and terminates forward in a vertical structure which occupies the space previously devoted to the bike's rear wheel. This structure terminates in a "tongue" which rests on the chainstay bridge (see detailed pictures later).
